Product Detail

What's the difference between the Elite and Stealth version?

• Elite edition comes with 13g wire and does not include Secondary Extended power switch
• Stealth edition includes a thicker 12g wire and the Secondary Extended power switch

What comes in the box?

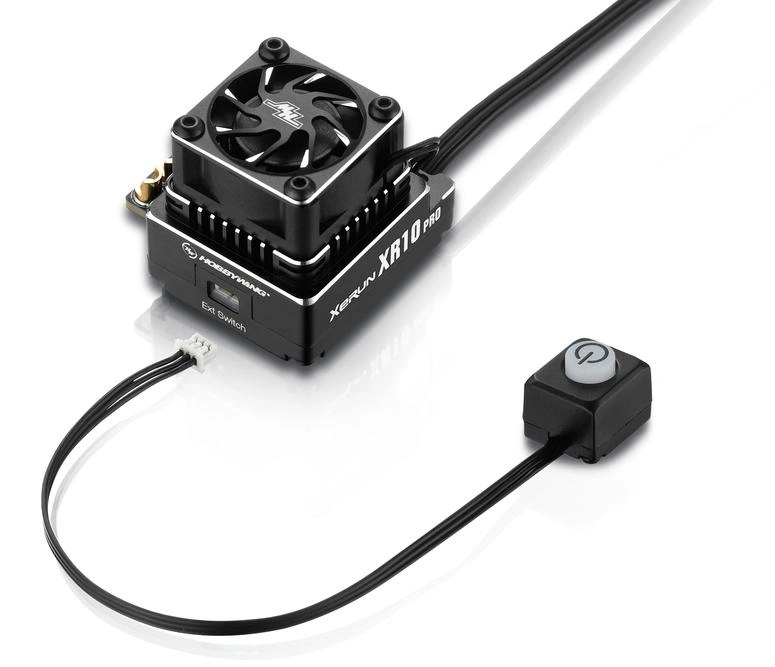

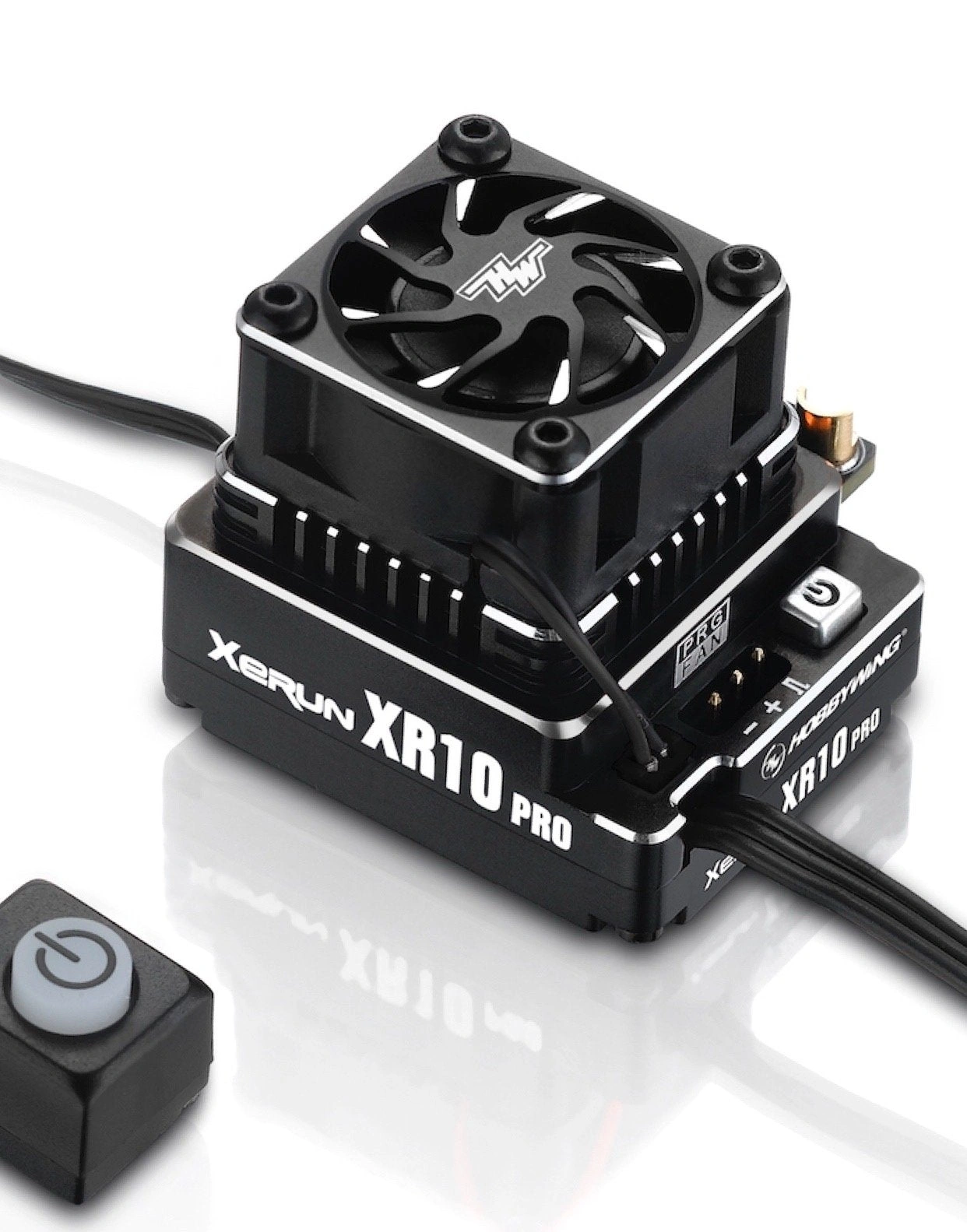

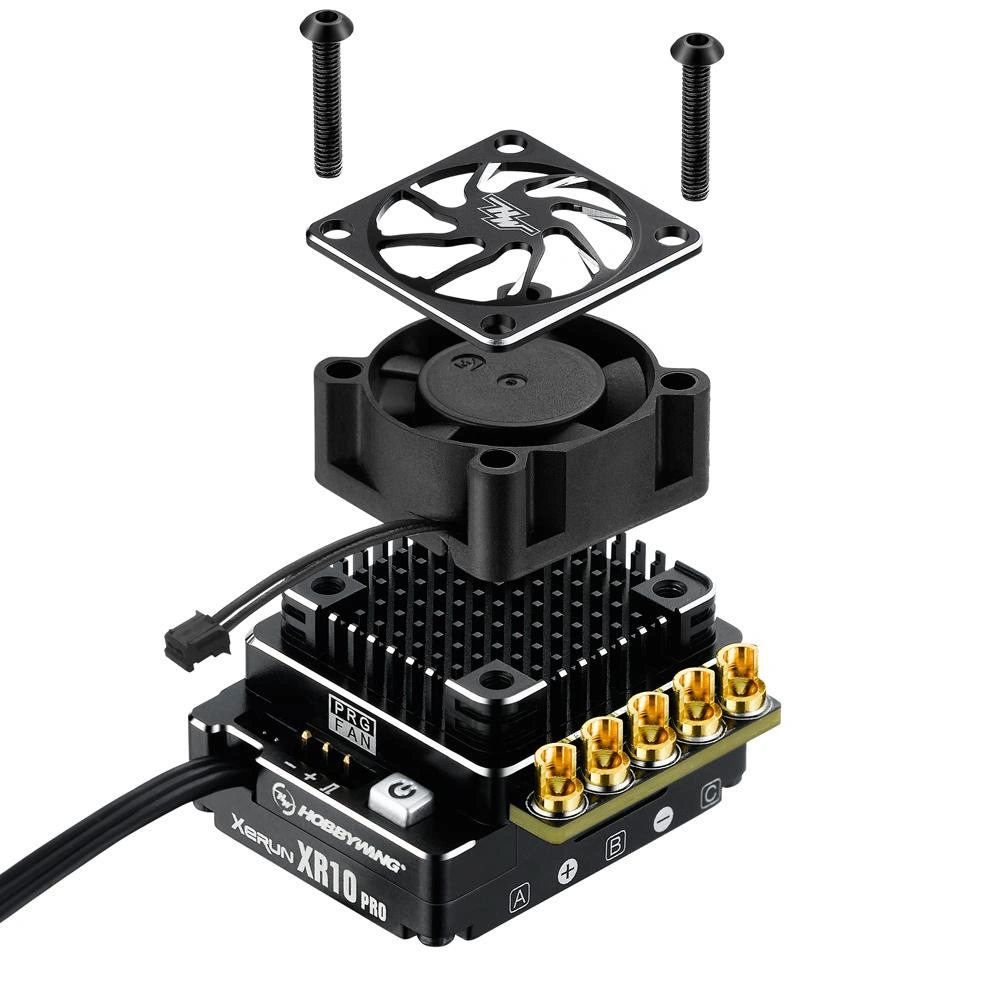

• XR10 PRO ESC w/ a cooling fan
• (2) Input wires & (3) Output wires -PRE-SOLDERED- (See Edition package schedule below)
• (2) x cooling fan (comes with one back-up fan)
• Dual capacitors
• Decals
• Bonus parts: heat tubes, double tape, nylon cable zap traps

Features:

• Upgraded 32-bit M4 microprocessor with more powerful processing capability guarantees stable control and rapid response. (Industry's highest 32-bit microprocessor, increased processing speed by X4)
• Peak current up to 1200A. (this is not a typo)
• Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
• Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving; braking forces (of the motors).
• Expanded range of the max. brake force brings in the active brake ranges from 101% to 150%.
• Softening function (HOBBYWING-initiated) for milder or wilder driving control and better driving efficiency.
• 10 select-to-use profiles applicable to all 1/10th RC car racing.
• Internal electronic key switch for long service life, high reliability; and the external switch port for connecting an external switch (included in the product box) is applicable to different situations.
• Separate PRG/FAN port is able to power an external fan for maximize cooling performance or connect a LCD program box or OTA programmer to the ESC.
• With the OTA programmer (purchase separately), users are able to program parameters, upgrade firmware and check relevant data during the event using either the iPhone or Android devices.
• Switchable motor direction (CCW/CW) for various chassis.
• Multiple protections comes in standard
• low-voltage cutoff protection
• ESC and motor thermal protection
• Fail safe (throttle signal loss protection)
• Reverse polarity protection*
• Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real time.
• Firmware upgrade via Hobbywing multifunction LCD program box or OTA (item sold separately).

* The external standard cappack will still be damaged if battery reversal occurs. For full protection, recommend to use HOBBYWING SMT-MLCC capacitor banks (purchase separately)
